SyncSign™

A True Cable-Free Digital Signage Solution

  • Sync with Calendars or Web Services
  • Year-long Battery Life
  • Self-Install in Minutes

Intelligent Booking & Scheduling Devices

- Intelligent Booking & Scheduling Devices -

  • Conference Room
    Conference Room
  • Co-working Space
    Co-working Space
  • Educational Venue
    Educational Venue
  • Gymnasium
    Gymnasium

Conference Room

Real-time Schedules Right at the Door

Prevent the confusion and frustration caused by double bookings and take advantage of every available room.

Co-working Space

Electronic Name Tag for Reservation

Showing each seat's state precisely in the co-working spaces, maximize use of office space through improved visibility.

Educational Venue

An Indicator of Course Arrangement

Display the current curriculum schedule and show the notification when the classroom was changed or canceled.

Gymnasium

The Flexible Wayfinding and Signage

It's so convenient for temporary facilities and general layout to make the places more clean and decent than before without a mass of cables.

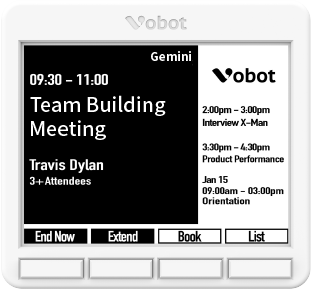

Sync with Your Existing Calendars

  • With familiar user-friendly interface.
  • No IT knowledge or training needed.
  • Synchronize real-time status of the calendars.

Energy-efficient & Maintenance-free

  • Radio-controlled and battery-powered, no cables required.
  • At least 1-year battery life, benefits from the e-ink screen and new connectivity technology.
  • Eco-friendly and sustainable. Get rid of any paper or printing.
  • Lowest TCO (Total Cost of Ownership)

SyncSign

> 365 days

Other

0.4 days

SyncSign

E-Paper Screen

0.0001 Watt

vs.

Other

LCD/LED Screen

2 Watt

1

:

20,000

SyncSign

802.15.4 Mesh

0.0005 Watt

vs.

Other

802.11 Wi-Fi

0.5 Watt

1

:

1,000

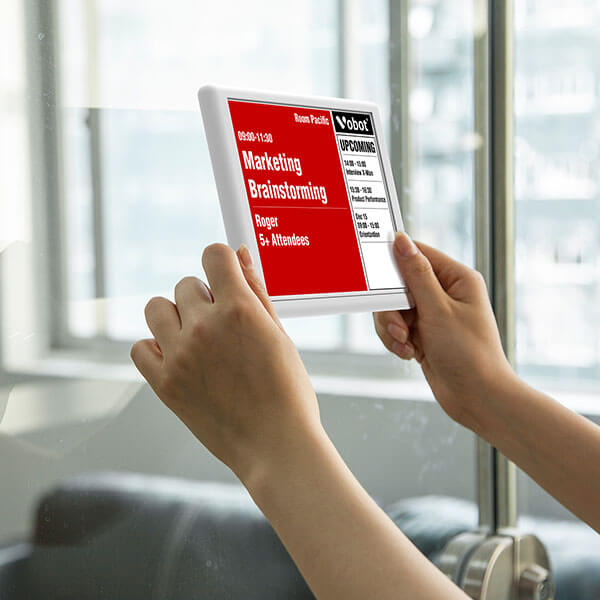

Easy to Install,
Just Like A Sticky Note

SyncSign can easily attach on almost any surface with the wall-mounted bracket and the super magnet on the back.

Sticker

Bracket

Magnet

Highly Customizable

  • Select the layout templates we offered.
  • Replace our regular content with custom information on display.
  • Customize your corporate branding or logo across all the devices.
  • The open API/SDK makes customization easier.

The Other Scenarios

- The Other Scenarios -

The Wide-ranging Application of Digital E-ink Display

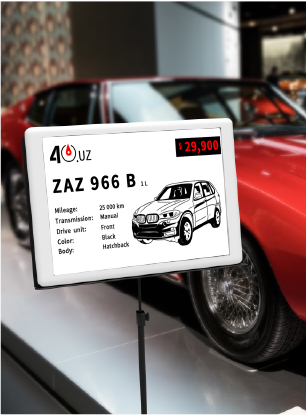

Auto Dealership

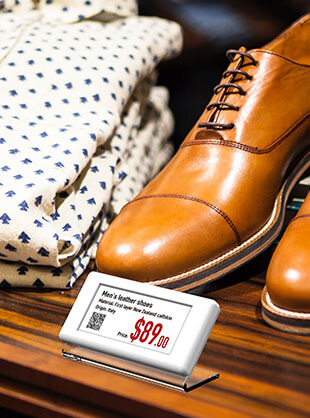

Supermarket

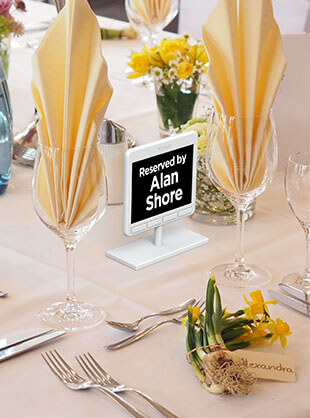

Restaurant

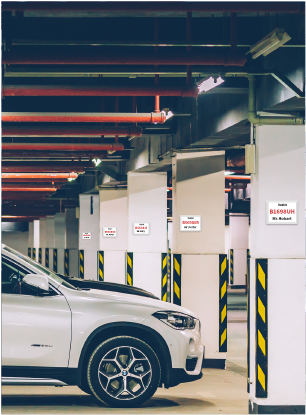

Parking Lot

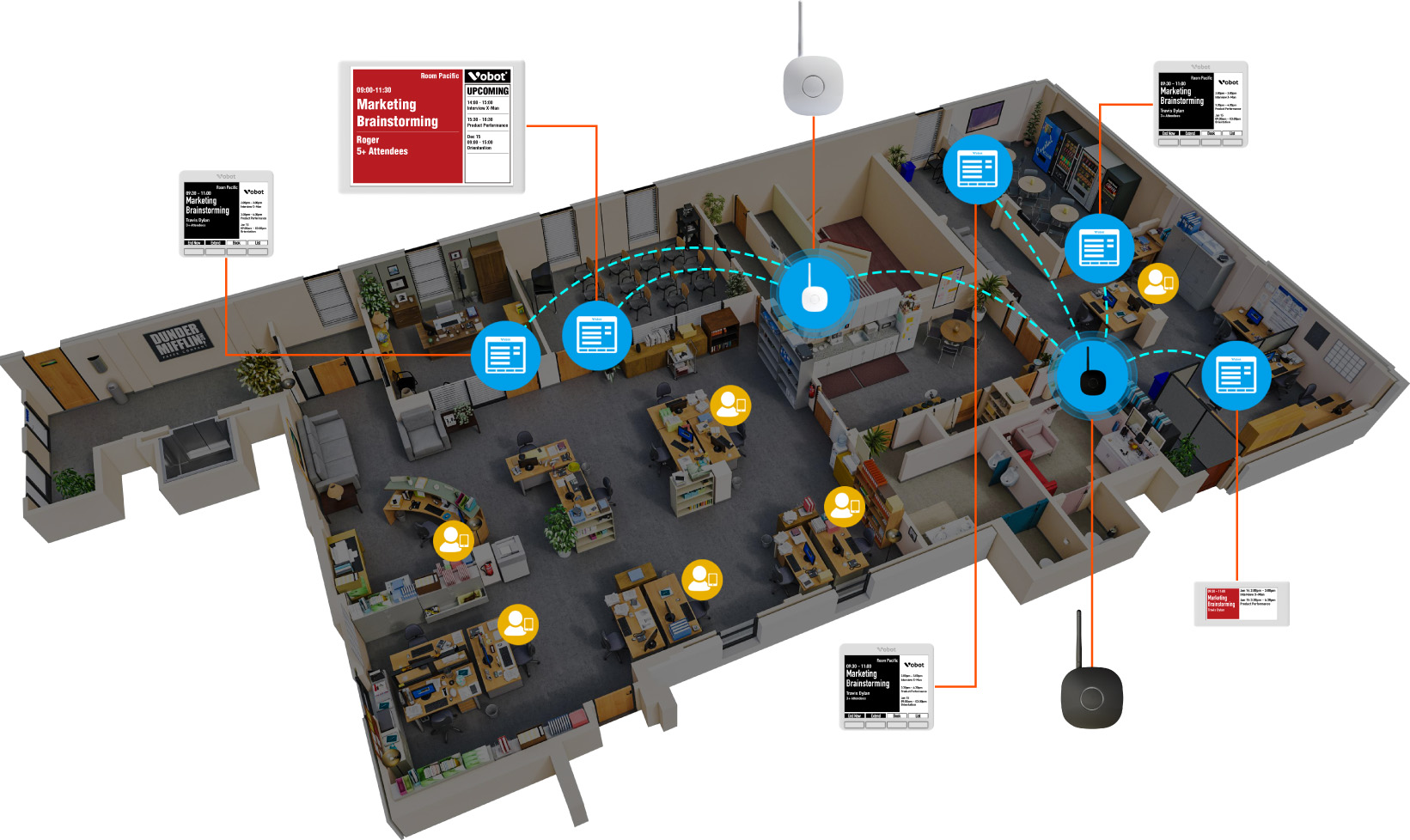

How Does SyncSign Work

- How Does SyncSign Work -

The Hub and Range Extender (optional) create a mesh network that connect all displays.

Technical Features

Appearance
Product Name
7.5-Inch
SyncSign
4.2-Inch
SyncSign
2.9-Inch
SyncSign
Hub
Range Extender
Introduction
Designed to display a large amount of information, can be used in school, auto dealership and more.
Best for meeting room & classroom booking, scheduling and management.
Perfect fit for the current price and inventory tag bar.
Connect to the Internet and manage up to 16 displays or range extenders.
Expand the range of local mesh network.
Shell Color
Display Colors
/
Viewing Angle
Close to 180°
/
Resolution
880 * 528
400 * 300
296 * 128
/
Active Area
163.24 * 97.94(mm)
84.80 * 63.60(mm)
66.85 * 29.10(mm)
/
Pixel Pitch
0.19 * 0.19(mm)
0.21 * 0.21(mm)
0.23 * 0.23(mm)
/
DPI
137
119
112
/
UI Buttons
N/A
4
N/A
/
Touch Screen
N/A
N/A
N/A
/
Battery
4800mAh Built-in Rechargeable Polymer
2 x CR3032, Replaceable
2 x CR2032, Replaceable
/
Battery Life
1 Year Standby
/
Signal Booster
Built-in, up to 20dBm
Built-in, up to 20dBm
Power
/
5V/1A USB adapter
5V/1A USB adapter
Ethernet
/
100Mbps
/
Wi-Fi
/
2.4GHz 802.11b/g/n Wi-Fi
/

Specifications

Low Power Mesh Network

  • SyncSign doesn't use the traditional Wi-Fi connection in order to save power.
  • Incorporate power saving mechanisms. Each display keeps polling Hub for new information every 10 seconds and goes to deep sleep in between.

Better Coverage

  • SyncSign can cover 20,000 Sq. Ft. space (Concrete, masonry or brick wall may reduce its radio coverage).
  • Expand the coverage with more Hubs or Range Extenders.
  • 2.4GHz ISM band usage ensures license free product deployment worldwide.

Managed with Hub

  • Uplink with Ethernet or Wi-Fi.
  • Ultra low cost bridge between local mesh network and Internet.
  • Manage up to 16 individual displays in a single mesh network.

Secure System

  • Only authorized nodes are allowed to join the mesh network.
  • All transmissions between display and hub are encrypted with AES-128.
  • On-premise deployment upon request.

Open API / SDK

  • With Hub SDK, developers can easily write Python code and deploy the application to the hub.
  • Integrate with IFTTT or other web services with open API.

Specifications

Displays

Appearance
Product Name
7.5-Inch SyncSign
4.2-Inch SyncSign
2.9-Inch SyncSign
Introduction
Designed to display a large amount of information, can be used in school, auto dealership and more.
Best for meeting room & classroom booking, scheduling and management.
Perfect fit for the current price and inventory tag bar.
Shell Color
Display Colors
Viewing Angle
Close to 180°
Resolution
880 * 528
400 * 300
296 * 128
Active Area
163.24 * 97.94(mm)
84.80 * 63.60(mm)
66.85 * 29.10(mm)
Pixel Pitch
0.19 * 0.19(mm)
0.21 * 0.21(mm)
0.23 * 0.23(mm)
DPI
137
119
112
UI Buttons
N/A
4
N/A
Touch Screen
N/A
N/A
N/A
Battery
4800mAh Built-in Rechargeable Polymer
2 x CR3032, Replaceable
2 x CR2032, Replaceable
Battery Life
1 Year Standby
Signal Booster
Built-in, up to 20dBm

Hub & Repeater

Appearance
Product Name
Hub
Range Extender
Introduction
Connect to the Internet and manage up to 16 displays or range extenders.
Expand the range of local mesh network.
Shell Color
Power
5V/1A USB adapter
5V/1A USB adapter
Ethernet
100Mbps
/
Wi-Fi
2.4GHz 802.11b/g/n Wi-Fi
/

Setup Process

- Setup Process -

Step 1. Mounting the bracket on the surface where you want to place.

Step 2. Put the SyncSign on the bracket, and the super magnet on the back will stably hold the display.

Step 3. Power it on, pairing with Hub (secure mesh network).

Step 4. Sign in your calendar administrator account and bind each display to the calendar. Everything is ready after binding.
